Description

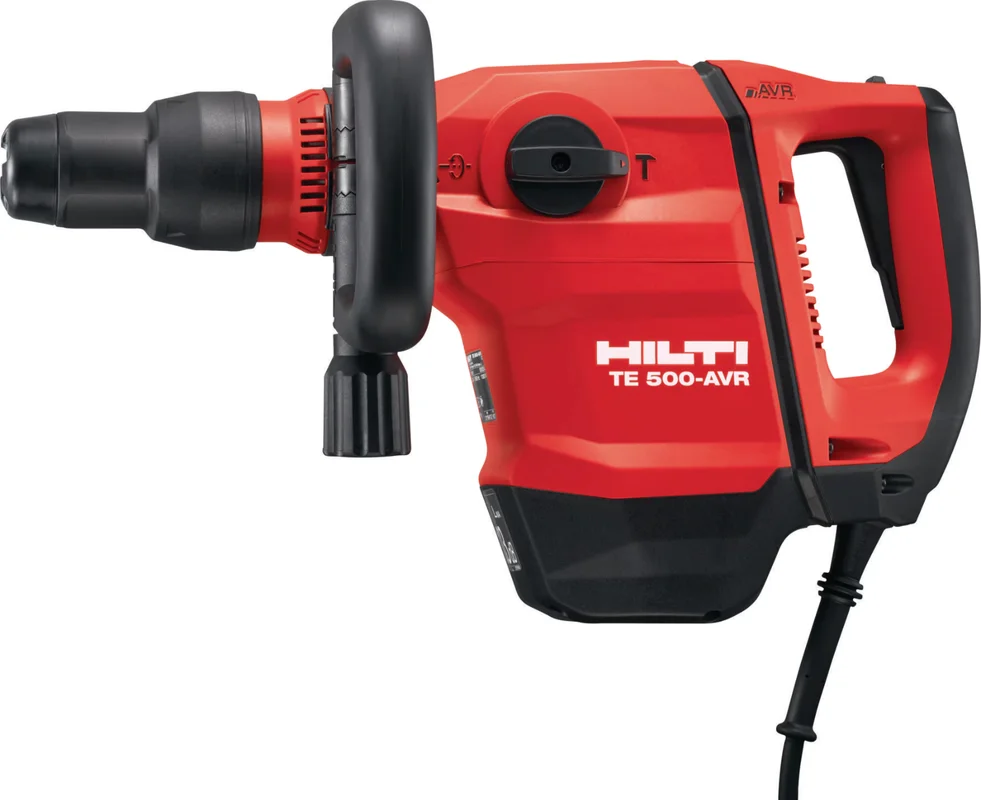

TE 500-AVR SDS MAX BREAKER HAMMER

Demolition hammer perf pkg TE 500-AVR #3512856 product number: 3512856

Powerful SDS Max (TE-Y) demolition hammer for heavy-duty chiseling in concrete and masonry, with draft Vibration Reduction (AVR)

• Working direction: Wall
• Tool chuck type: TE-Y (SDS Max)
• Weight according EPTA-Procedure 01/2003: 13.9 lb.

Package content

• 1x TE 500-AVR 120V Breaker
• 1x TE 500-AVR Tool case assy
• 1x Hilti Grease 50ml
• 2x Narrow-Flat Chisel TE-YP FM 36
• 2x Pointed Chisel TE-YP SM 36

FEATURES & APPLICATIONS

TE 500-AVR Performance Pkg Mix #3512856Features

• High versatility for a wide range of chiseling applications
• draft Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
• High robustness and long lifetime due to separate lubrication chambers
• Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite
• Optional DRS-B dust removal system collects up to 95% of dust

Applications

• Chiseling on concrete and masonry walls
• Channeling on concrete and masonry
• Repairing concrete
• Enlarging breaches
• Light chipping on concrete or masonry

TECHNICAL DATA

TE 500-AVR Performance Pkg Mix #3512856

Working direction: Wall

Tool chuck type: TE-Y (SDS Max)

Weight according EPTA-Procedure 01/2003 without battery: 13.9 lb.

Single impact energy: 6.3 ft-lbs

Rated current: 13.1 A

Full hammering frequency: 3510 impacts/minute

Max. chiseling performance: 61 in³/min

Dimensions (LxWxH): 18.4 x 4.6 x 10.4 in

Triaxial vibration for chiseling into concrete: 8.2 m/s² ¹

Dust removal system available: TE DRS-B

A-weighted emission sound pressure level: 84 dB (A) ²

Rated input power: 1100 W
