Description

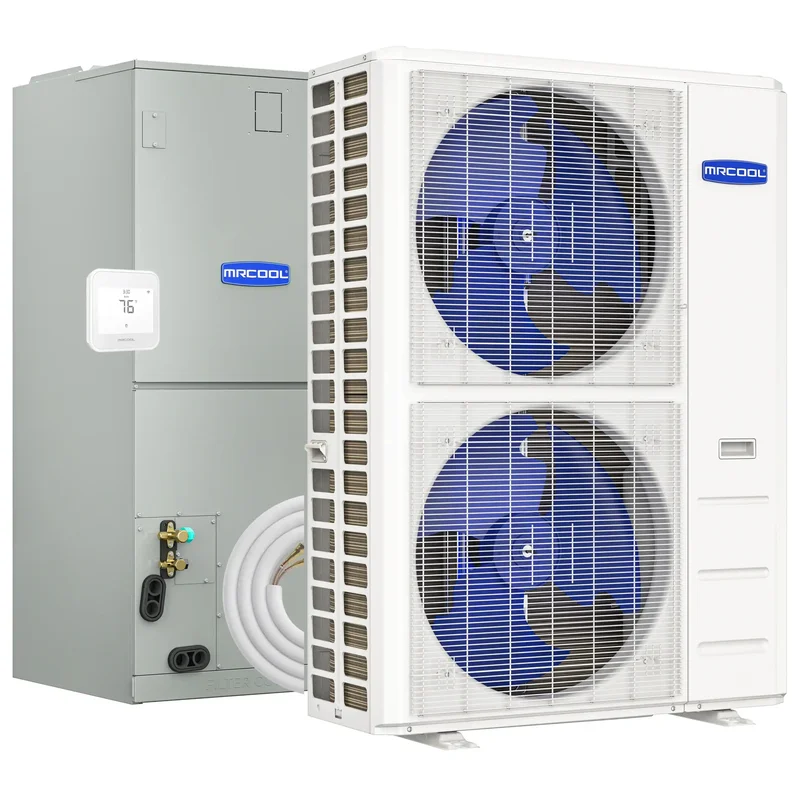

MRCOOL Hyper Heat 2nd Gen 48K BTU, 4 Ton, 16.5 SEER2 Heat Pump Condenser and Ducted Air Handler with 25 Ft. R-454B No-Vac Lineset – CENTRAL-48-HP-230B25
The MRCOOL Central Heat Pump & Air Conditioner Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL Hyper Heat 2nd Gen 48K BTU, 4 Ton, 16.5 SEER2 Central Ducted Condenser
-
MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler
-
MRCOOL 25 Ft. R-454B No-Vac Lineset
- MRCOOL Smart Thermostat
1. MRCOOL Hyper Heat 2nd Gen 48K BTU, 4 Ton, 16.5 SEER2 Central Ducted Condenser (CENTRAL-48-HP-C-230B00-O)
-
R-454B refrigerant
-
10-year warranty, covering the compressor, parts, and labor
2. MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler (MVP-48-HP-MUAH-230A00-O)
-
Utilizes R-454B refrigerant, and an optional heat kit
-
10-year warranty
3. MRCOOL 25 Ft. R-454B No-Vac Lineset (NV25-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.34″ D x 38.39″ H x 38.58″ W |
| SEER2 | 16.5 |
| Tonnage | 4 |
| Cooling Capacity (BTU) | 48000 |
| Heating Capacity (BTU) | 50000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 24.49″ D x 52.99″ H x 21.02″ W |
| Tonnage | 4 |
| Cooling Capacity (BTU) | 48000 |
| Heating Capacity (BTU) | 48000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 35″ D x 35″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 2.11 |
| Line Set Length | 25ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Efficient Performance: 16.5 SEER2 rating ensures energy savings without compromising power.
-
Optimal Capacity: 48,000 BTU and 4-ton size fit medium to large homes perfectly.
-
Advanced Hyper Heat: Reliable heating even in colder climates.
-
Eco-Friendly Refrigerant: Uses R-454B for lower environmental impact.
-
Easy Installation: Includes 25 ft. no-vac lineset to speed up setup.
-
Durable Design: Built for long-lasting, low-maintenance operation.
Q&A
Q: What is the cooling capacity?
A: Provides 48,000 BTU (4 Ton) cooling for medium to large homes.
Q: What is the energy efficiency rating?
A: High 16.5 SEER2 for efficient heating and cooling year-round.
Q: What refrigerant does it use?
A: Uses eco-friendly R-454B refrigerant.
Q: What components are included?
A: Heat pump condenser, ducted air handler, and 25 ft no-vac lineset.
Q: Is it suitable for cold climates?
A: Yes, designed for reliable Hyper Heat performance even in cold weather.
Q: What are the key benefits?
A: Efficient, powerful heating and cooling with easy installation.
Maintenance Tips
-
Replace or clean air filters every 1-3 months.
-
Keep the outdoor condenser free from debris and vegetation.
-
Schedule annual professional HVAC inspections.
-
Check refrigerant levels and inspect the No-Vac lineset yearly.
-
Ensure ducts are properly sealed and insulated.
-
Use a programmable thermostat to optimize energy efficiency.
