Description

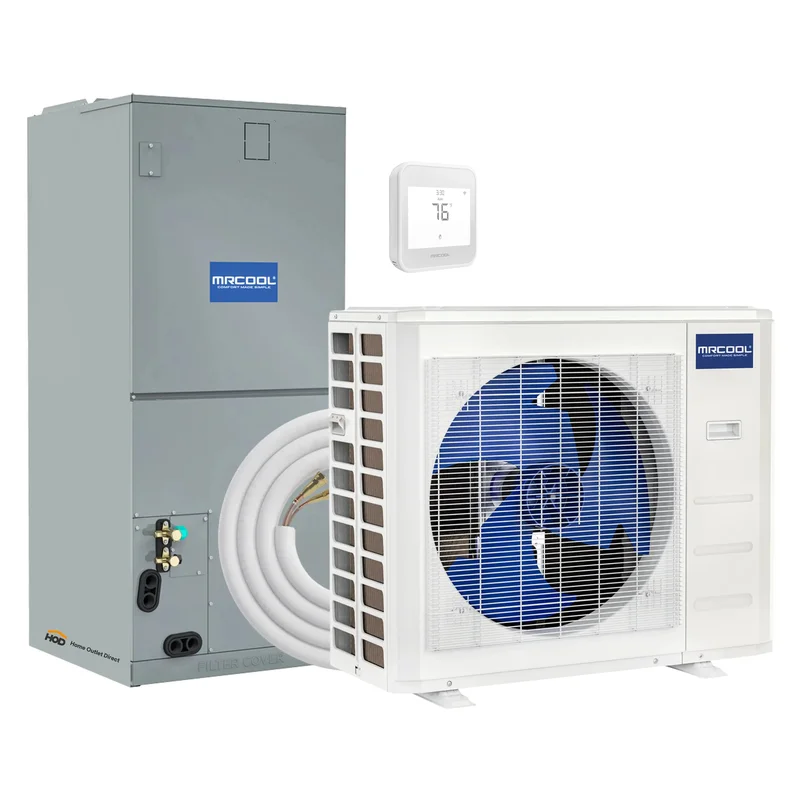

MRCOOL Hyper Heat 2nd Gen 24K BTU, 2 Ton, 18.3 SEER2 Heat Pump Condenser and Ducted Air Handler with 50 Ft. R-454B No-Vac Lineset – CENTRAL-24-HP-230B50
The MRCOOL Central Heat Pump & Air Conditioner Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL Hyper Heat 2nd Gen 24K BTU, 2 Ton, 18.3 SEER2 Central Ducted Condenser
-
MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler
-
MRCOOL 50 Ft. R-454B No-Vac Lineset
- MRCOOL Smart Thermostat
1. MRCOOL Hyper Heat 2nd Gen 24K BTU, 2 Ton, 18.3 SEER2 Central Ducted Condenser (CENTRAL-24-HP-C-230B00-O)
-
Uses R-454B refrigerant, a modern choice designed to reduce environmental impact.
-
Fully compatible with the 2-Ton MRCOOL® VersaPro® Central Ducted Air Handler
-
10-year warranty that covers the compressor, parts, and labor
2. MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler (MVP-24-HP-MUAH-230A00-O)
-
Offers flexible installation options, including upflow, downflow, and horizontal left or right configurations to fit various home layout
-
Uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining performance
3. MRCOOL 50 Ft. R-454B No-Vac Lineset (NV50-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro Gen 2 – Central Hyper Heat Gen 2aVersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 13.46″ D x 26.5″ H x 35.04″ W |
| SEER2 | 18.3 |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 23000 |
| Heating Capacity (BTU) | 24000 |
| Voltage (V) | 208-230 |
| Min Circuit Ampacity (A) | 19 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 17.52″ D x 45″ H x 21.02″ W |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 24000 |
| Heating Capacity (BTU) | 26000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 47″ D x 47″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (OZ) | 17.19 |
| Line Set Length | 49.2ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Ideal for Medium Spaces: 24,000 BTU (2 Ton) system delivers dependable heating and cooling for mid-size homes.
-
Hyper Heat Technology: Ensures strong, consistent heating performance even in low outdoor temperatures.
-
Energy Efficiency: 18.3 SEER2 rating reduces utility costs while maintaining year-round comfort.
-
Complete HVAC Package: Includes condenser, ducted air handler, and 50 ft. pre-charged No-Vac lineset with eco-friendly R-454B refrigerant.
-
Simplified Installation: No-Vac lineset minimizes setup time and makes installation more straightforward.
-
Trusted Brand: MRCOOL is known for durable, innovative, and user-friendly HVAC systems.
Q&A
Q: What is the MRCOOL CENTRAL-24-HP-230B50?
A: A 24,000 BTU (2 Ton) Hyper Heat 2nd Gen heat pump condenser with ducted air handler and 50 ft. pre-charged R-454B No-Vac lineset.
Q: How efficient is it?
A: Rated 18.3 SEER2, providing excellent energy efficiency and reliable heating and cooling.
Q: What are the key features?
A: Hyper Heat technology for low-temperature performance, eco-friendly refrigerant, and simple DIY-friendly installation.
Q: How does the No-Vac lineset help?
A: The 50 ft. lineset is factory pre-charged with R-454B refrigerant, removing the need for vacuum pumps or special tools.
Q: Where is it best used?
A: Great for small to medium homes that need efficient central HVAC with an extended lineset option.
Maintenance Tips
-
Clean or replace air filters regularly to ensure airflow and efficiency.
-
Inspect and clean condenser coils to prevent dust and debris buildup.
-
Keep outdoor condenser clear of plants, leaves, and obstructions.
-
Check No-Vac lineset connections and insulation for leaks or wear.
-
Inspect ductwork for air leaks or blockages to maintain performance.
-
Test thermostat and controls seasonally to confirm proper operation.
-
Schedule annual professional service for optimal efficiency and lifespan.
-
Always disconnect power before performing maintenance or cleaning.
