Description

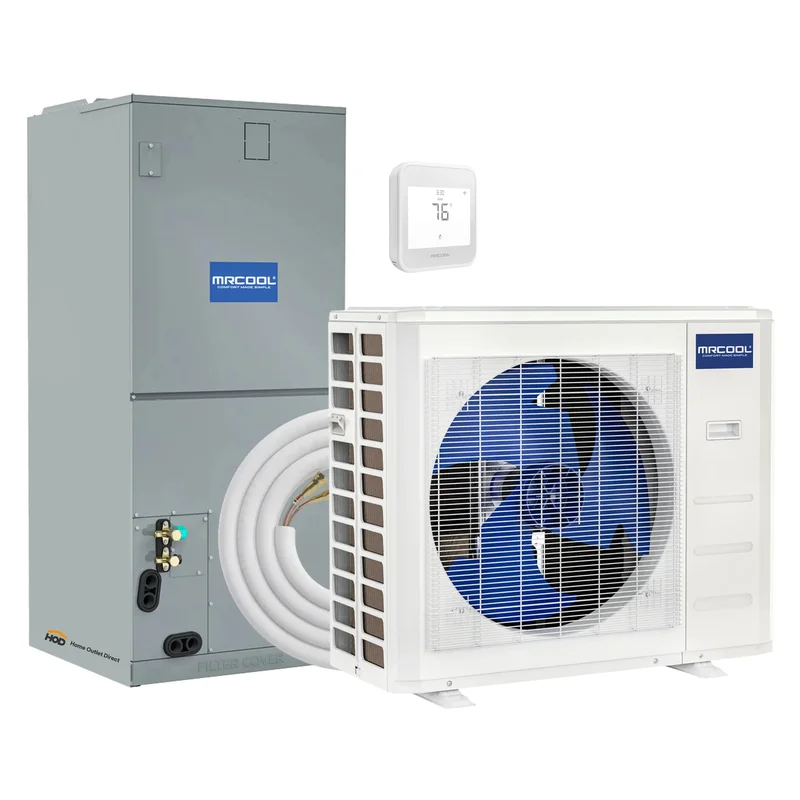

MRCOOL Hyper Heat 2nd Gen 24K BTU, 2 Ton, 18.3 SEER2 Heat Pump Condenser and Ducted Air Handler with 25 Ft. R-454B No-Vac Lineset – CENTRAL-24-HP-230B25
The MRCOOL Central Heat Pump & Air Conditioner Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL Hyper Heat 2nd Gen 24K BTU, 2 Ton, 18.3 SEER2 Central Ducted Condenser
-
MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler
-
MRCOOL 25 Ft. R-454B No-Vac Lineset
- MRCOOL Smart Thermostat
1. MRCOOL Hyper Heat 2nd Gen 24K BTU, 2 Ton, 18.3 SEER2 Central Ducted Condenser (CENTRAL-24-HP-C-230B00-O)
-
Uses R-454B refrigerant, a modern choice designed to reduce environmental impact.
-
Fully compatible with the 2-Ton MRCOOL® VersaPro® Central Ducted Air Handler
-
10-year warranty that covers the compressor, parts, and labor
2. MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler (MVP-24-HP-MUAH-230A00-O)
-
Offers flexible installation options, including upflow, downflow, and horizontal left or right configurations to fit various home layout
-
Uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining performance
3. MRCOOL 25 Ft. R-454B No-Vac Lineset (NV25-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 13.46″ D x 26.5″ H x 35.04″ W |
| SEER2 | 18.3 |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 23000 |
| Heating Capacity (BTU) | 24000 |
| Voltage (V) | 208-230 |
| Min Circuit Ampacity (A) | 19 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 17.52″ D x 45″ H x 21.02″ W |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 24000 |
| Heating Capacity (BTU) | 26000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 35″ D x 35″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 2.11 |
| Line Set Length | 25ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Efficient Comfort for Small-to-Medium Spaces – 24,000 BTU (2 Ton) heat pump provides reliable heating and cooling.
-
High SEER2 Rating – 18.3 SEER2 ensures energy-efficient operation and lower utility costs.
-
25 Ft. R-454B No-Vac Lineset – Pre-charged extended line set simplifies installation and reduces labor time.
-
Ducted Air Handler – Integrates seamlessly with existing ductwork for consistent whole-home comfort.
-
Durable & Quiet – 2nd Gen design ensures long-lasting, low-noise performance.
Q&A
Q: What is included in this MRCOOL Hyper Heat 2nd Gen system?
A: It includes a 24,000 BTU (2 ton) heat pump condenser, ducted air handler, and a 25 ft. pre-charged R-454B No-Vac lineset for easy installation.
Q: How energy efficient is the system?
A: With an 18.3 SEER2 rating, it provides high-efficiency cooling and heating while lowering energy costs.
Q: Can it provide both heating and cooling?
A: Yes, the heat pump condenser delivers year-round comfort with both heating and cooling capabilities.
Q: What makes the No-Vac lineset beneficial?
A: The pre-charged R-454B No-Vac lineset simplifies installation by eliminating the need for vacuum pumps or additional refrigerant charging.
Q: What size area can it cover?
A: Ideal for small to medium-sized homes up to approximately 900–1,200 sq. ft., depending on insulation and climate.
Q: Who should choose this system?
A: Homeowners seeking a compact, energy-efficient HVAC system with easy installation and reliable year-round performance.
Maintenance Tips
-
Air Filter Care: Replace or clean indoor filters every 1–3 months to maintain airflow and efficiency.
-
Outdoor Unit Maintenance: Keep condenser free of leaves, dirt, and debris.
-
Ductwork Inspection: Seal leaks and clean ducts to ensure even air distribution.
-
Condensate Drain: Check and clear drain lines regularly to prevent water buildup.
-
Coil Cleaning: Schedule annual cleaning of evaporator and condenser coils for peak performance.
-
Lineset Check: Inspect the 25 ft. R-454B No-Vac lineset for proper installation, insulation, and integrity.
-
Professional Service: Arrange yearly maintenance to maintain 18.3 SEER2 efficiency and extend system lifespan.
