Description

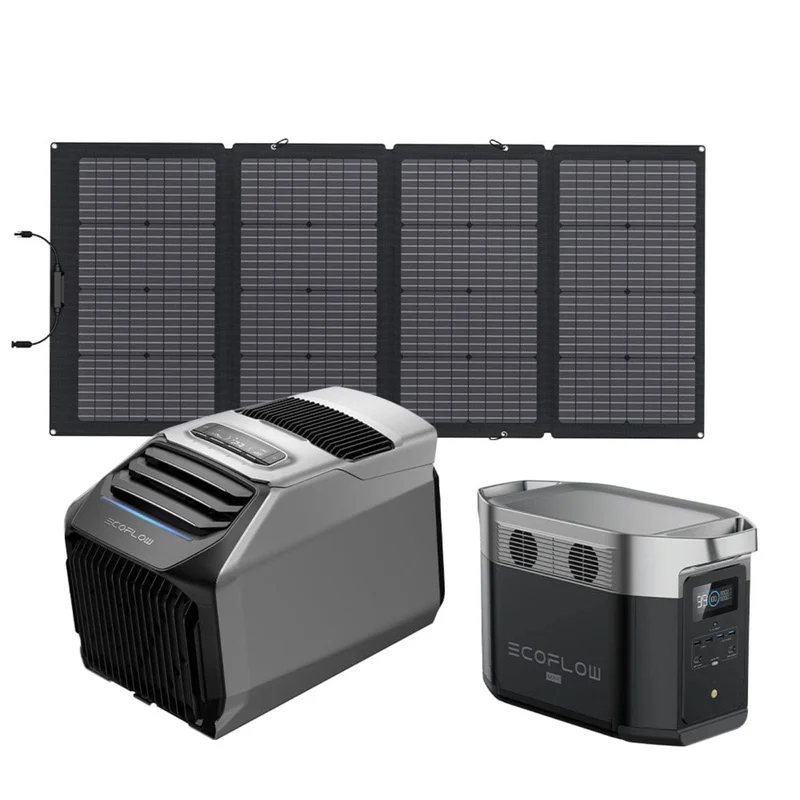

EcoFlow WAVE 2 Portable AC + DELTA Max 1600 + 220W Portable Solar Panel – ZYDKT210-US-DELTAMax1600-US-1xSolar220W
Industries Most POWERFUL And Compact Portable AC Providing Comfort Anywhere & Anytime!
Features
-
The most powerful portable AC with cooling and heating.
-
The most compact AC. Only 14.5kg.
-
Designed for camping and van life, power for the whole night and stay quiet.
-
Multi-recharging approaches: Interchangeable battery, AC/solar/car/power station.
-
Anywhere, anytime use. No installation, No drainage.
-
Using R290: a natural refrigerant
1600 Features
-
Charge up from 0-80% in 65 minutes.
-
2400W output to power up to 15 devices at once
-
2kWh capacity that is expandable up to 6kWh
-
DELTA Max 2000 handles devices up to 3400W
-
Fully charge via a wall outlet in a rapid 1.8hrs
-
Choose between solar panels, wall outlets or the EcoFlow Smart Generator to charge up
EcoFlow 220W Portable Solar Panel Features:
-
Bifacial Design
-
23% High Conversion Rate
-
Adjustable Angle Kickstand Case
-
Easy to Plug and Unplug
-
Waterproof and Durable
World’s Most Compact AC
-
Only 14.5kg, as light as a DELTA2
-
No installation, no drainage, fits anywhere
-
Interchangeable battery, with 4 recharging ways
World’s Most Powerful Cooling & Heating
Cool and heat in the fastest speed –
5100 BTU in cooling, 6100 BTU in heating enabled by EcoFlow tailor-made compressor
Runs Longer And Quieter
Multiple modes with app control
enabled by EcoFlow advanced software algorithm
Anywhere, Anytime Use | No Installation, No Drainage
-
Multiple accessory solutions such as air duct adapters and vent board to fit any space.
-
In cooling mode, water can be released as vapor, no drainage needed
Anywhere, Anytime Recharge | Interchangeable Battery With 4 Charging Methods
-
Solar Panel – Max. input 400W Via XT60 Port
-
Car outlet – Max. input 200W Via XT60 Port
-
Wall socket – Max. input 820W Via AC Socket
-
Power Station – Max. input 700W Via DC Socket
A Greener Way To Beat The Heat | Using R290: A Natural Refrigerant
-
Clean, green, and perfect for a relaxing cooling experience.
-
Lower global warming potential
-
No ozone emissions
Specifications
| Model Name | EcoFlow WAVE 2 |
|---|---|
| Cooling Power | 5100 BTU / 1500 W |
| Heating Power | 6100 BTU / 1800 W |
| Cooling Area | ≤ 10m² |
| Mode | Cooling mode/Heating mode/Fan mode |
| Fast mode/Sleeping mode/Eco mode | |
| Add-on battery Charging Method | AC outlet, power station, Car outlet, Solar Panel |
| Rated Running Power | AC:550W / DC: 495W |
| Noise Level | 44 ~ 56dB |
| Waterproof Rating | IPX4 |
| App | ✓ |
| Dimensions | 518*297*336mm |
| Weight | Approx. 14.5 Kg |
| Model Name | EcoFlow DELTA Max 1600 |
| Capacity | 1612Wh |
| Extra Battery | Support up to two DELTA Max Smart Extra Battery/Smart Generator |
| AC Output | 6*20A outlets, 2000W total (Surge 5000W) |
| Max Device(s) Power Supported by X-Boost | 2800W |
| USB-A Output | 2 ports, 5V, 2.4A, 12W Max per port |
| USB-A Fast Charge | 2 ports, 5V, 2.4A / 9V, 2A / 12V, 1.5A, 18W Max per port |
| USB-C Output | 2 ports, 5/9/12/15/20V, 5A, 100W Max per port |
| Car Power Output | 12.6V, 10A, 126W Max |
| DC5521 Output | 2 ports, 12.6V, 3A, 38W Max per port |
| AC Charging Input | 1600W Max, 15A |
| Solar Charging Input | 800W Max, 11-100V, 10A |
| Car Charging Input | Support 12V/24V battery, 8A |
| Battery Chemistry | NCM |
| Cycle Life | 500 cycles to 80% capacity |
| Shelf Life | 1 year (after a full charge) |
| Connection | Wi-Fi |
| Net Weight | Approx. 48lbs |
| Dimension | 19.6*9.5*12 in |
| Model Name | EcoFlow 220W Portable Solar Panel |
| Rated Power | 220W Front Side/155W Rear Side |
| Cell Type | Monocrystalline Silicon |
| Efficiency | 22-23% |
| Dimensions | 82*183*2.5cm (32.3*72.0*1.0 in) |
| Open Circuit Voltage | 21.8V (Vmp 18.4V) |
| Short Circuit Current | 13A (Imp 12.0A) Front Side/ 8.8A (Imp8.4A) Rear Side |
| Weight (Solar Panel) | Approx. 9.5kg (20.9lbs) |
✓EcoFlow WAVE 2 User Manual
✓EcoFlow DELTA Max Manual
✓ EcoFlow 220W Portable Solar Panel Manual
Videos
What our Experts Think
-
All-in-One Cooling & Power Solution: Combines the WAVE 2 Portable AC, DELTA Max 1600 power station, and 160W solar panel for total off-grid comfort.
-
Reliable Power Output: DELTA Max 1600 provides strong, steady power to keep the WAVE 2 running for hours.
-
Renewable Energy Source: 160W solar panel enables efficient, sustainable charging anywhere.
-
Portable & Practical: Compact, easy-to-transport design ideal for camping, RVs, and outdoor events.
-
Quiet Operation: Cools effectively while maintaining low noise levels for maximum comfort.
Q&A
Q: What’s included in this EcoFlow bundle?
A: This bundle features the EcoFlow WAVE 2 portable air conditioner, DELTA Max 1600 power station, and one 160W portable solar panel—ideal for portable, off-grid cooling and power.
Q: How powerful is the WAVE 2?
A: The WAVE 2 delivers up to 5100 BTU of cooling and 6100 BTU of heating, perfect for RVs, tents, and small spaces.
Q: How long can the DELTA Max 1600 power the WAVE 2?
A: The DELTA Max 1600 can provide approximately 5–7 hours of runtime depending on temperature and power settings.
Q: How quickly can the 160W solar panel recharge the DELTA Max 1600?
A: Under optimal sunlight, the 160W solar panel can recharge the DELTA Max 1600 in roughly 10–12 hours.
Q: Is the system portable and quiet?
A: Yes. Both the WAVE 2 and DELTA Max 1600 are compact, low-noise, and designed for easy off-grid use and outdoor travel.
Maintenance Tips
-
Regular Cleaning: Wipe the WAVE 2, DELTA Max 1600, and solar panel with a soft, dry cloth to remove dust and dirt.
-
Battery Maintenance: Recharge the DELTA Max 1600 every few months; avoid full discharge to prolong battery life.
-
Solar Panel Care: Keep the 160W panel clean and properly angled toward sunlight for maximum efficiency.
-
Check Connections: Inspect ports, cables, and plugs for wear or looseness before use.
-
Ventilation: Operate the WAVE 2 in a well-ventilated area for effective and safe cooling.
-
Proper Storage: Store all components in a cool, dry, dust-free environment away from direct sunlight.
-
Firmware Updates: Keep the EcoFlow app updated to maintain optimal system performance.
